产品特性

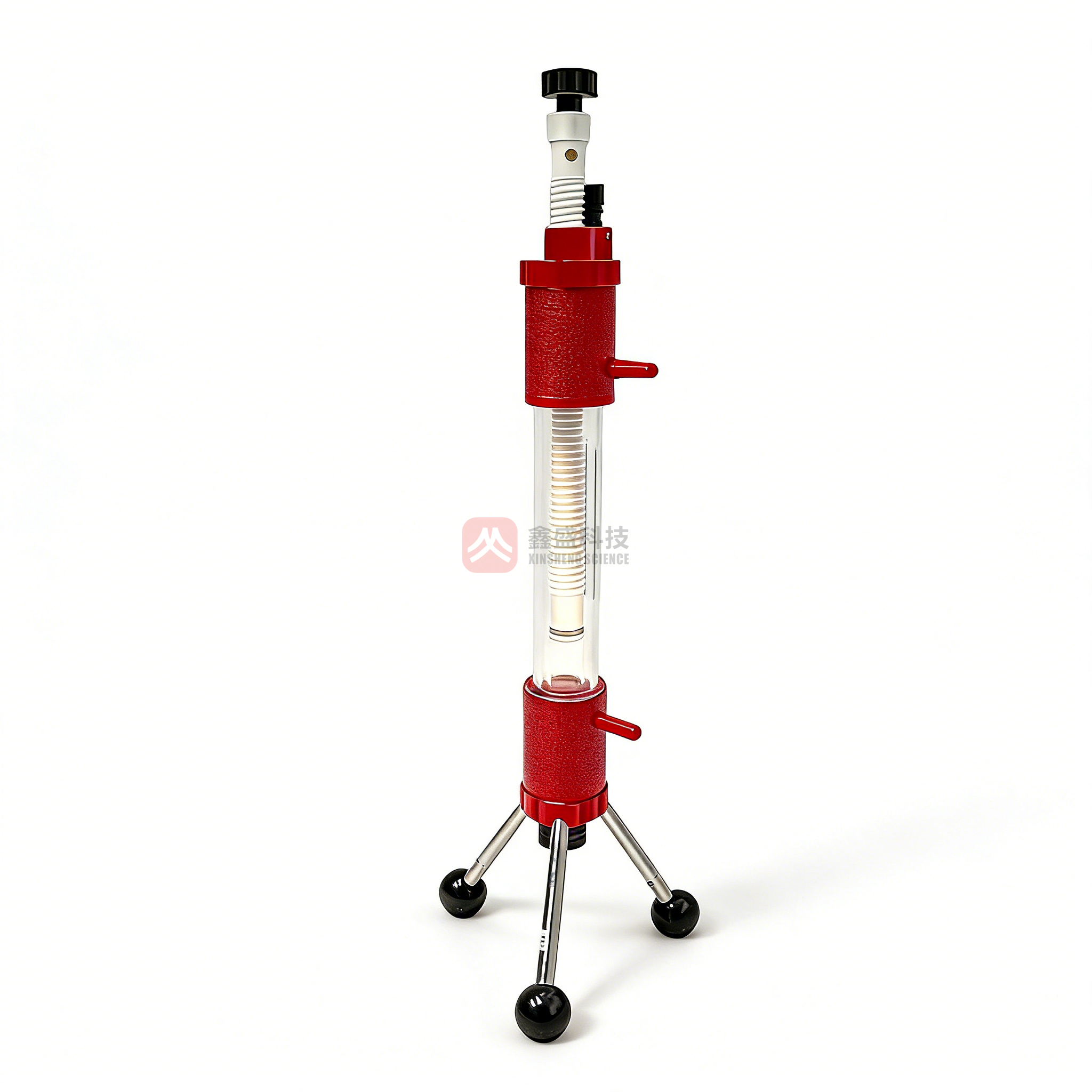

采用高精密玻璃柱管，可清晰观察柱床情况双层结构，对柱管内层析介质可实现温控循环柱头设计可确保均匀的缓冲分布和可重复的装填筛网采用卡扣式设计，方便使用与更换独特的支撑脚设计，放置后可以调节水平
多种规格可选，直径有:10mm、16mm、26mm、50mm单端和双端设计压缩
Bio-LCCs 层析柱（单柱头）
| 序号 | 产品名称 | 内径/mm | 高度/mm | 装填高度/cm | 最大耐压 |
| 1 | Bio-LCCs 16/200 Column | 16 | 200 | 3-17 | 2MPa |
| 2 | Bio-LCCs 16/400 Column | 16 | 400 | 23-37 | 2MPa |
| 3 | Bio-LCCs 16/700 Column | 16 | 700 | 43-57 | 2MPa |
| 4 | Bio-LCCs 16/1000 Column | 16 | 1000 | 83-97 | 2MPa |
| 5 | Bio-LCCs 26/200 Column | 26 | 200 | 3-17 | 1MPa |
| 6 | Bio-LCCs 26/400 Column | 26 | 400 | 23-37 | 1MPa |
| 7 | Bio-LCCs 26/700 Column | 26 | 700 | 43-57 | 1MPa |
| 8 | Bio-LCCs 26/1000 Column | 26 | 1000 | 83-97 | 1MPa |
| 9 | Bio-LCCs 50/200 Column | 50 | 200 | 2.5-15.5 | 0.7MPa |
| 10 | Bio-LCCs 50/300 Column | 50 | 300 | 12.5-25.5 | 0.7MPa |
| 11 | Bio-LCCs 50/600 Column | 50 | 600 | 42.5-55.5 | 0.7MPa |
| 12 | Bio-LCCs 50/1000 Column | 50 | 1000 | 82.5-95.5 | 0.7MPa |
Bio-LCCt 层析柱(双柱头)
| 序号 | 产品名称 | 内径/mm | 高度/mm | 装填高度/cm | 最大耐压 |
| 1 | Bio-LCCt 10/200 Column | 10 | 200 | 0-16 | 2MPa |
| 2 | Bio-LCCt 10/400 Column | 10 | 400 | 21-36 | 2MPa |
| 3 | Bio-LCCt 10/1000 Column | 10 | 1000 | 81-96 | 2MPa |
| 4 | Bio-LCCt 16/200 Column | 16 | 200 | 0-16 | 2MPa |
| 5 | Bio-LCCt 16/400 Column | 16 | 400 | 10-36 | 2MPa |
| 6 | Bio-LCCt 16/700 Column | 16 | 700 | 40-66 | 2MPa |
| 7 | Bio-LCCt 16/1000 Column | 16 | 1000 | 70-96 | 2MPa |
| 8 | Bio-LCCt 26/200 Column | 26 | 200 | 0-16 | 1MPa |
| 9 | Bio-LCCt 26/400 Column | 26 | 400 | 10-36 | 1MPa |
| 10 | Bio-LCCt 26/700 Column | 26 | 700 | 40-66 | 1MPa |
| 11 | Bio-LCCt 26/1000 Column | 26 | 1000 | 70-96 | 1MPa |
| 12 | Bio-LCCt 50/200 Column | 50 | 200 | 0-15 | 0.7MPa |
| 13 | Bio-LCCt 50/300 Column | 50 | 300 | 0-25 | 0.7MPa |
| 14 | Bio-LCCt 50/600 Column | 50 | 600 | 29-55 | 0.7MPa |
| 15 | Bio-LCCt 50/1000 Column | 50 | 1000 | 69-95 | 0.7MPa |
